In modern fire protection systems, controlling water flow efficiently and reliably is critical. Doing so relies on a multitude of components, switches and valves internally working together to provide optimal water flow and pressure.
Butterfly valves have emerged as an integral component in these systems, offering a perfect balance of simplicity, reliability, and cost-effectiveness. These essential devices play a vital role in controlling water flow through fire standpipe and fire sprinkler systems, providing both isolation and regulation capabilities.
How Do Butterfly Valves Work?
At their core, butterfly valves operate on a remarkably straightforward principle. They control water flow through the rotation of an internal disc, which can be positioned parallel to the flow for full water passage or rotated 90 degrees to completely stop the flow.
This unique design allows for quick operation while maintaining sprinkler system integrity, making them ideal for fire protection applications.
Recommended Butterfly Valve Products
The AE-115 Ductile Iron Butterfly Valve
Our flagship AE-115 butterfly valve exemplifies the perfect combination of robust construction and reliable performance. Designed specifically for fire sprinkler protection systems, this valve features:
- Quick-acting quarter-turn operation
- Clear position indication for at-a-glance status checks
- EPDM seat for superior sealing and longevity
- Integral tamper switches for enhanced security

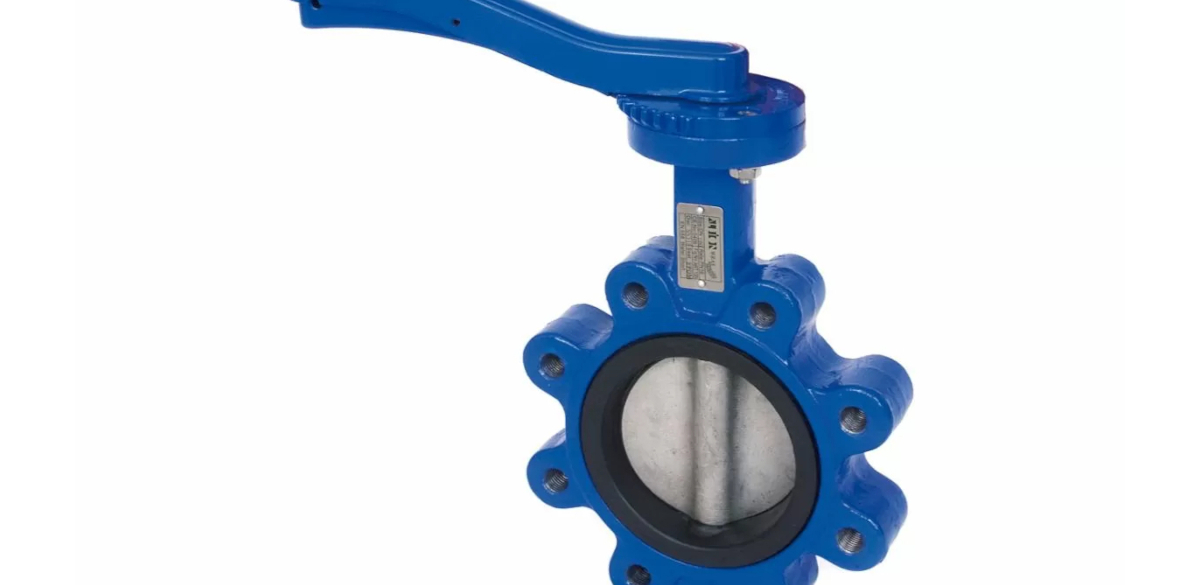

The AE-135 Ductile Iron Butterfly Valve Lugged
For installations requiring additional mounting flexibility, the AE-135 lugged butterfly valve offers enhanced versatility. This model includes:
- Threaded inserts for secure, independent flange connection
- Dead-end service capability
- Superior pressure ratings
- Compatibility with various control systems
The AE-115 HQ5 Actuated Butterfly Valve
When automation is essential, our AE-115 HQ5 butterfly valve delivers precise control and reliable operation. Notable features include:
- Electric actuation for remote operation
- Integrated position feedback
- Fail-safe operation options
Key Applications of Butterfly Valves in Fire Protection
Butterfly valves serve multiple critical functions within fire protection systems.
- System Isolation
- Enable maintenance without full system shutdown
- Allow for sectional control in large installations
- Facilitate system testing and certification
- Flow Control
- Regulate water pressure in different system zones
- Enable precise control during testing procedures
- Manage water distribution in complex systems
- Emergency Management
- Provide quick shutdown capabilities when needed
- Enable rapid system activation during emergencies
- Support zoned response in large facilities
Butterfly Valve Installation and Maintenance
When implementing butterfly valves in fire protection systems, several factors require attention.
- Regular inspection of position indicators and tamper switches
- Periodic testing of valve operation through its full range of motion
- Verification of proper sealing and operation
- Compliance with BS-5839-6 and BS EN 15004-1 standards for maintenance schedules
Choosing the Right Valves
Selecting the appropriate butterfly valve depends on various factors:
- System size and pressure requirements
- Installation environment and accessibility needs
- Control and monitoring requirements
- Compliance with local regulations and standards
