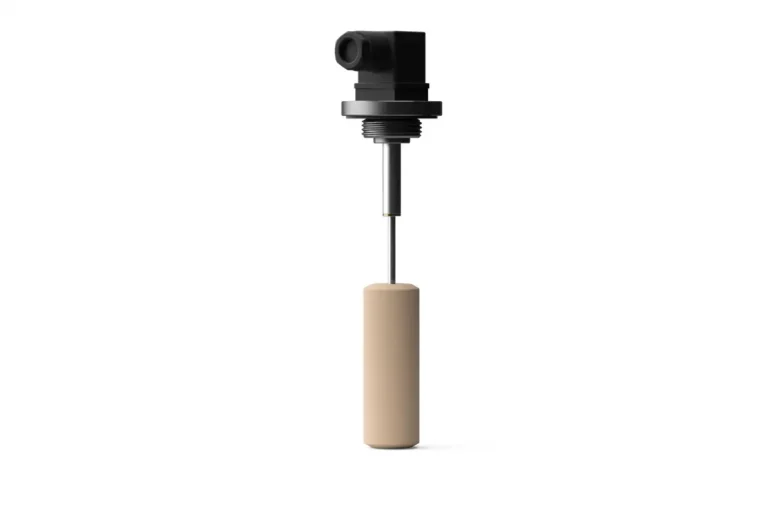

AE-LA3 – Trimmable Vertical Level Switch

Electromagnetic Float Level Switch SPDT with 1000mm or 500mm Trimmable Stem

Principle

When the magnetic field of permanent magnet inside the float is moved into to the proximity of the reed switch inside the stationary stem, the reed switch contacts “snap” together and closes the electrical circuit. When the magnetic field is moved away from the reed switch, the reed switch contacts move apart and the circuit is opened.

For order specification please see the data sheet PDF below
