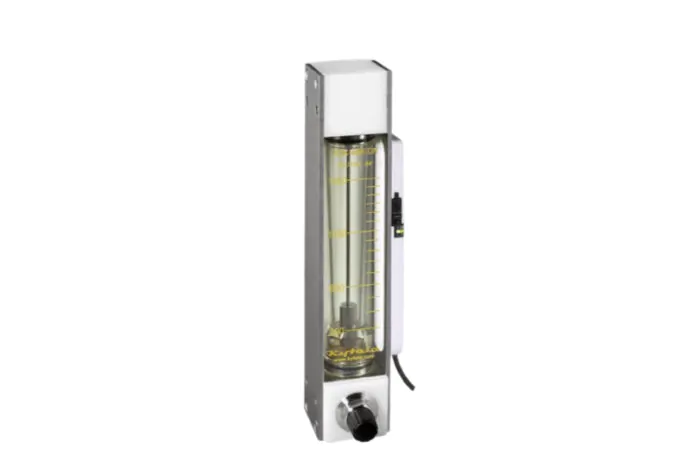

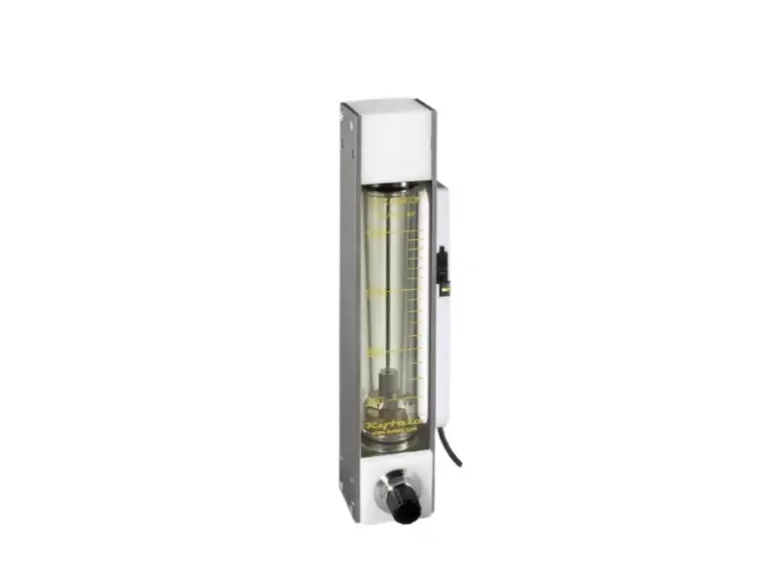

KDxS- Kytola Variable Area Flow Meter With mA Output

The KDxS Smart incorporates all valued features of Kytola flow meters, in addition it is equipped with a 4-20 mA output that makes it even more desirable for applications where precise liquid and gas flow measurement and monitoring are required. The mA transmitter is highly visual indicating high, set and low flows with a LED colour panel. If needed, an inductive flow alarm sensor can easily be attached to the K Smart.

The flow meter has a heavy-duty impact resistant polymer flow tube and a flow adjustment valve on the inlet. The model K Smart variable area flow meter with mA output offers a multitude of options to best accommodate various application requirements. The flow rate and alarm indications are easily read at a glance as the scales  and LEDs are clear. The flow meter unit is rapid to assemble and disassemble whenever maintenance is needed.

Flow range air, 1.013 bar(a), 20°C:
min 200 – 1200 NL/min
max 400 – 3000 NL/min

Valve in inlet

Scales for alternative gases (option)
