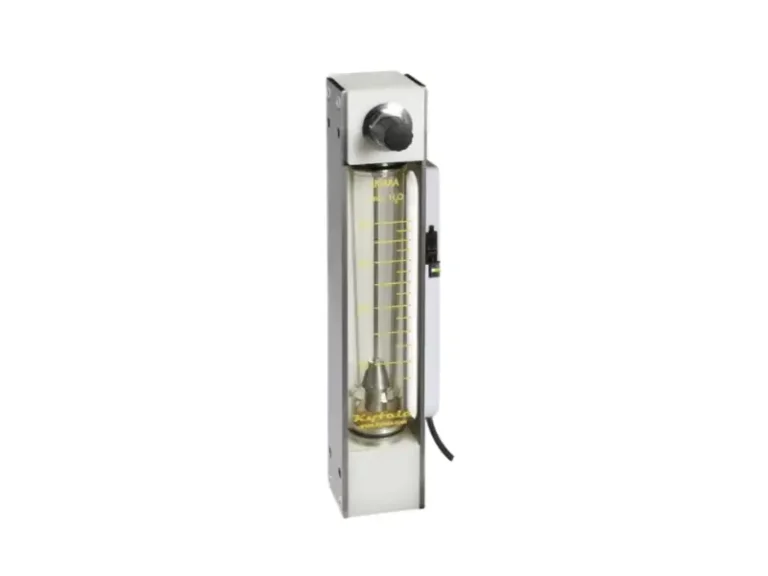

KxS- Kytola Variable Area Flow Meter With mA Output
The KxS Smart incorporates all valued features of Kytola flow meters, in addition it is equipped with a 4-20 mA output that makes it even more desirable for applications where precise liquid and gas flow measurement and monitoring are required. The mA transmitter is highly visual indicating high, set and low flows with a LED colour panel. If needed, an inductive flow alarm sensor can easily be attached to the K Smart.
The flow meter has a heavy-duty impact resistant polymer flow tube and a flow adjustment valve on the outlet. The model K Smart variable area flow meter with mA output offers a multitude of options to best accommodate various application requirements. The flow rate and alarm indications are easily read at a glance as the scales and LEDs are clear. The flow meter unit is rapid to assemble and disassemble whenever maintenance is needed.
Flow range H2O, 20°C:
min 7.5 – 40 L/min
max 10 -120 L/min
Flow range air, 1.013 bar(a), 20°C:
min 200 – 1200 NL/min
max 400 – 2800 NL/min
