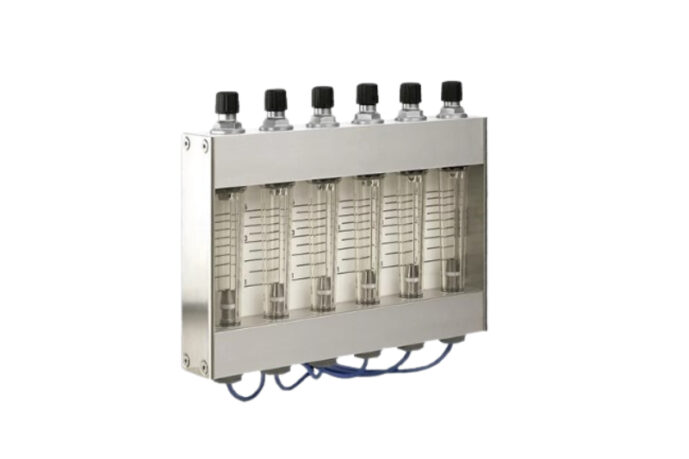

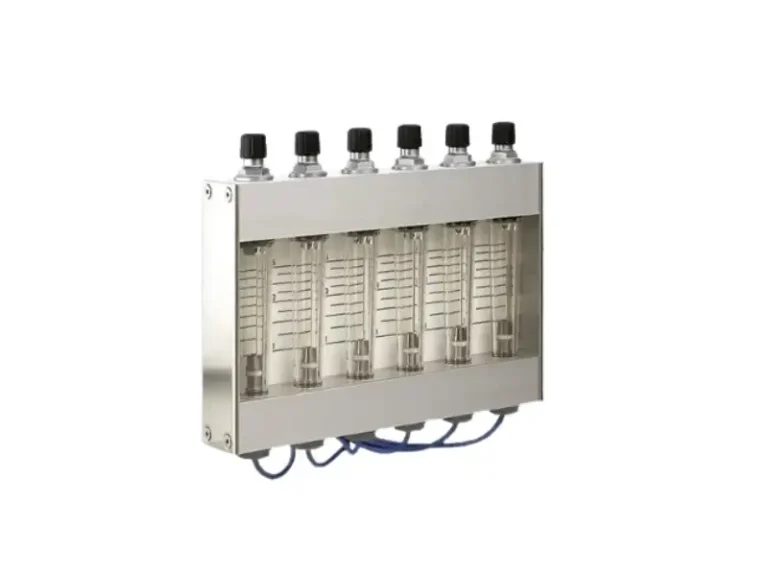

VExA – Kytola Multi Tube Flow Meter Block For Oil

The multi-tube variable area oil flow meter block VExA offers a solution to measure several streams of oil in individual channels. Kytola’s oil flow meter banks are highly adaptable measuring and monitoring devices. The VExA multi-channel oil flow meter is available with up to 7 flow tubes to accommodate most industrial application needs. VExA is especially suitable in circulating lubrication oil systems and other industrial applications where easy-to-read mechanical equipment are wanted. We believe in finding the most suitable solution for our customers’ needs. This is why our flow meters can also be tailor-made to customer specific requirements.

The VExA flow meter has a sturdy construction, it is made to withstand harsh industrial conditions. The flow tubes are made of heavy-duty impact resistant polymer. Each flow tube has its individual flow adjustment valve on the outlet. The block has a quick-change tube feature. End blocks are made of aluminium.

Flow range, oil at 150 cSt:
min 0.02 – 0.2 L/min
max 2 – 10 L/min

Flow range, oil at 220 cSt:
min 0.02 – 0.14 L/min
max 1 – 7 L/min
