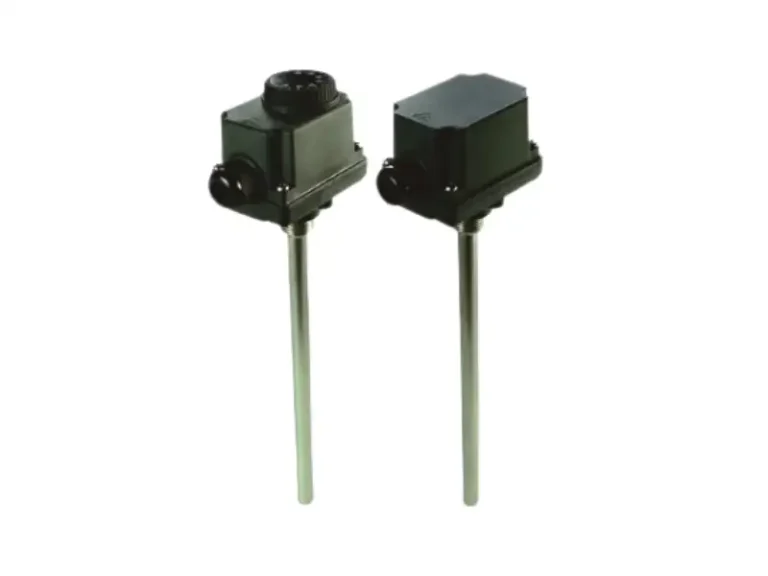

Y048/49 – Insertion Thermostat

Housing: IP44, black PC-ABS, UL94V0. High impact and UV resistance. 2 removable wall mounting lugs.

Cable input: One M20 cable gland.

Set point adjustment: By °C printed knob for external adjustment models, by screw driver and printed dial on internal adjustment models. °F values available as an option.

Sensing element: Liquid filled bulb, located inside a backside mounted pocket in 304L stainless steel or nickel plated brass.

Adjustment ranges: -35+35°C (-30+95°F), 4-40°C (40-105°F), 30-90°C (85-195°F), 30-110°C (90-230°F)

Rod length: 90, 230, 300mm. Other lengths on request

Electrical connections: 3 screw terminal connection block

Mounting: by the ½” BSPT pocket fitting

Contact: SPDT

‍

Electrical rating, resistive loads:

– Open on temperature rise contact (C-1)

16A 250V, 50 ~60Hz: >100.000 cycles,

20A 250V, 50 ~60Hz: ≥50.000 cycles,

10A 400V, 50 ~60Hz: ≥50.000 cycles.

– Close on temperature rise contact (C-2): 6A 250V, 50 ~60Hz: >100000 cycles

‍

Electrical rating, inductive loads:

– Open on temperature rise contact (C-1): 6A 250V, 50 ~60Hz: >100000 cycles

– Close on temperature rise contact (C-2): 0.6A 250V, 50 ~60Hz: >100000 cycles.

‍

Minimum storage temperature: -35°C (-30°F)

Maximum ambient temperature: 60°C (140°F)

‍
